Moving to Hydrogen as a Carrier Gas for Gas Chromatography

There are a few different options when it comes to carrier gases used in gas chromatography – nitrogen, helium, and hydrogen.

In recent years, managing helium supply has been a challenge for labs. Despite being the second most abundant element in the universe, helium’s availability on Earth is low. It is formed from the radioactive decay of uranium and thorium in granite rocks in the Earth’s continental crust. Most helium atoms produced this way diffuse to the Earth’s surface, into the atmosphere and then into space and, currently, there is no economical way to capture the atoms directly. In fact, 97% of the helium captured for use is obtained as a by-product of the extraction of natural gas from the ground, but the number of gas fields in the world with enough helium to justify the cost of the separation process to obtain it (a helium content of at least 0.3%) is decreasing.¹ Also, after it has been used, helium is not re-captured for re-use.

With this issue growing as a concern for lab managers, what can be done about it?

Leading analytical instrumentation manufacturers are addressing the complication surrounding helium and are offering solutions for moving to hydrogen as a carrier gas for gas chromatography.

Markes TD100-xr Automated Thermal Desorber
Markes TD100-xr Automated Thermal Desorber



Thermal Desorption

To combat these issues, TD (Thermal Desorption) instruments manufacturers Markes International have turned towards making their range of TD systems multi-gas enabled. In short, this feature allows them to switch between the three gases – helium, nitrogen, and hydrogen.

Not only is this convenient for analysts during helium shortages, using hydrogen means it is also better for the environment. Helium needs to be extracted, shipped, and stored using specialized equipment. Hydrogen, on the other hand, is simple to generate using just water and electricity. Switching from helium to hydrogen saves up to 90% per cylinder. Further, purchasing an in-house hydrogen generator eliminates the need for cylinder deliveries, significantly reducing a laboratory’s costs and carbon footprint.

markes helium webinar banner

Learn more about moving to hydrogen as a carrier gas for thermal desorption GC/MS analysis with an upcoming webinar.



HydroInert Source for Hydrogen Carrier Gas on GC/MS

The new Agilent HydroInert source is designed to improve chromatographic efficiencies with Hydrogen Carrier gas like faster, shorter separations and helps avoid loss of sensitivity, spectral anomalies and offers superior high-boiler peak shape.

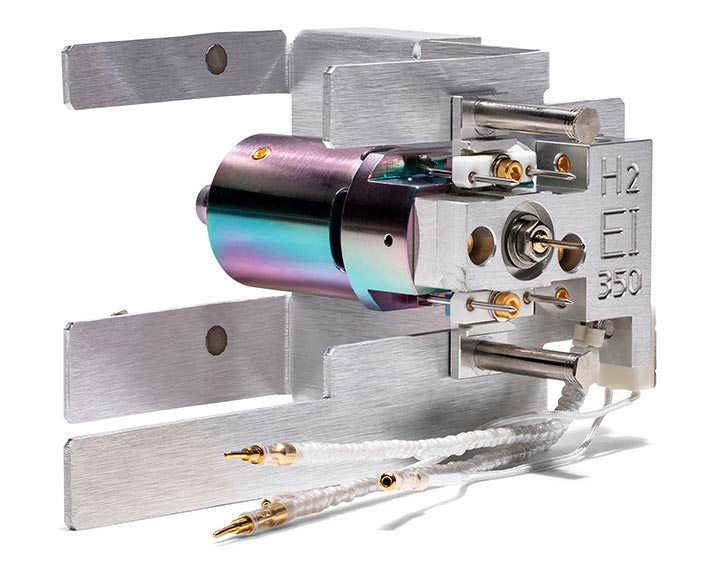

agilent hydroinert source
Agilent HydroInert source is designed to improve chromatographic efficiencies with Hydrogen Carrier gas



The HydroInert source is a novel source based on the Agilent extractor source design. The HydroInert source is an easy conversion from the existing EI extractor or EI Inert Plus sources in both the single quadrupole (Agilent 5977B or 5977C GC/MSD) and the triple quadrupole (Agilent 7000D or 7000E triple quadrupole GC/MS) systems. Do not mix the HydroInert source parts with the extractor source parts; this can cause unexpected and unwanted results, especially when using hydrogen carrier gas.

Learn more about the Agilent HydroInert Source here.



References:

  1. https://www.zmescience.com/other/feature-post/helium-shortage-geology-feature-08082020/
