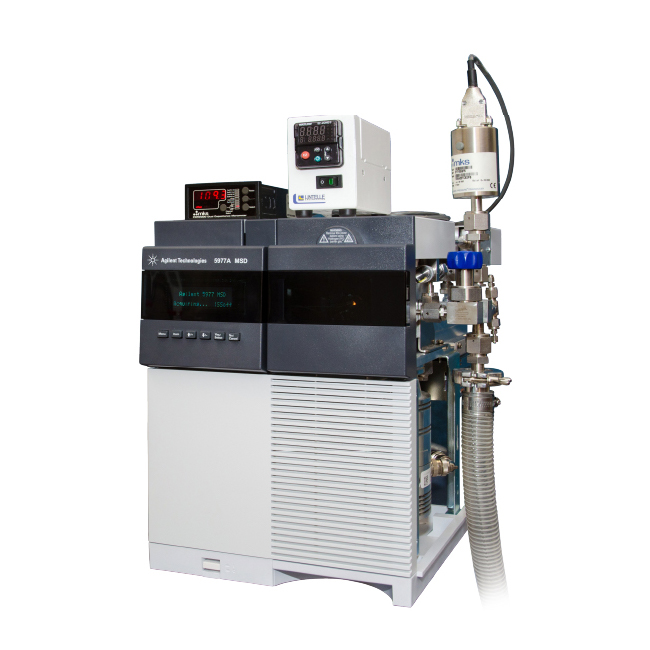

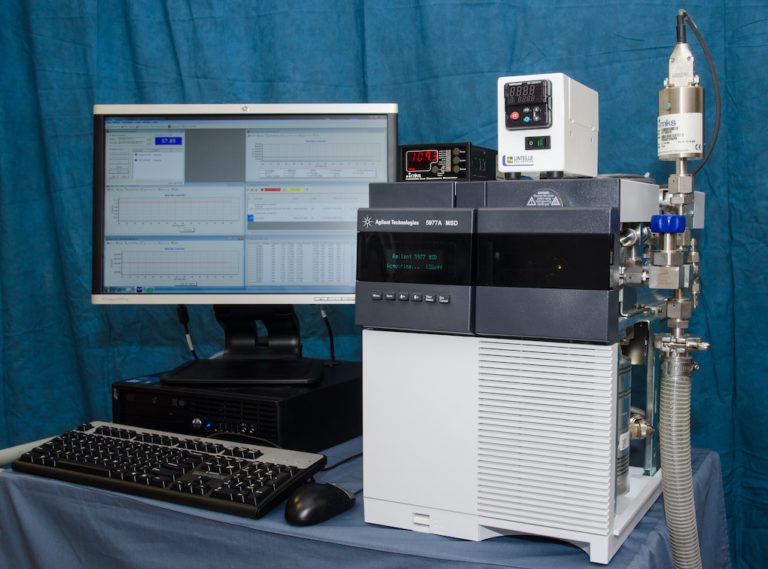

Diablo 5000B RTGA Real-Time Gas Analyzer

The Diablo 5000B RTGA Real-Time Gas Analyzer provides a realtime chemical measurement tool for continuous process improvements.
The Diablo 5000B RTGA Real-Time Gas Analyzer provides a realtime chemical measurement tool for continuous process improvements. It is ideal for applications where very fast analysis is required, such as monitoring for transients and continuous reactions. The Diablo RTGA can be used for fuel cell gas analysis, syngas monitoring and many other applications. The Diablo 5000B RTGA bridges the gap between low-performance Residual Gas Analyzers (RGAs), and high performance laboratory mass spectrometers. The 5000B combines Agilent’s proven 5977 Mass Selective Detector technology with Diablo’s special process sampling interface and MS Sensor 4.0 process analysis software. The RTGA can be converted easily between RTGA and GC-MS applications with the addition of a gas chromatograph. One of the important features of the 5000B RTGA is its ability to perform stable and reliable quantitative analysis. From the extremely stable 5977 MSD, to the process sampling interface, and the MS Sensor software, the RTGA has been designed with quantitative analysis in mind. The Diablo 5000B RTGA is based on the high performance Agilent Technologies 5977 bench top mass spectrometer. The scan speed, stability, and sensitivity of this system allows for fast, quantitative analysis beyond the limited trend monitoring typical for lower-cost and lower performing Resdiual Gas Analyzers (RGAs). In addition to fast, quantitative analysis for the standard direct sampling applications, the RTGA can easily be converted to a GC/MS system by addition of a gas chromatograph (GC) with a gas-sampling valve to address applications requiring additional chromatographic selectivity; traditional RGAs do not have this capability.
diablo analytical
diablo 5000b rtga
truck-icon

Need supplies for this instrument?

Features

  • Fast, real-time response to process changes
  • Flexible, rugged, fast responding direct process sampling interface
  • Uses a high-performance Agilent Technologies 5977B quadrupole mass spectrometer (5977 MSD)
  • Easy conversion of the 5977 MSD to standard GC/MS configuration
  • Linear response and stable, reliable quantitative analysis
  • Hardware and software enhancements allow for hydrogen detection
diablo 5000b rtga

Expand the boundaries of your science with the

Diablo 5000B RTGA Real-Time Gas Analyzer

Our team is standing by!
Request an application consultation and our team can help determine the best solution for you and your team.

Related Resources

PDF: Brochure

Comprehensive overview of the Diablo 5000B RTGA instrument, including features and benefits, MS Sensor 4.0 software & key applications.

Video

Amplify your rapid process development by visualizing your process streams in real-time with Diablo 5000B RTGA.
